Multi-cluster global access control for Kubernetes and Service Mesh

Denis Jannot | October 19, 2020

In this blog series, we will dig into specific challenge areas for multi-cluster Kubernetes and service mesh architecture, considerations and approaches in solving them.

In a previous blog post we covered Identity Federation for Multi-Cluster Kubernetes and Service Mesh which is the foundation for multi-cluster global access control.

We explained how to setup each Istio cluster with a different trust domain to make sure each service has a unique global identifier.

So, each Service has a different SPIFFE ID with the format spiffe://<trust domain>/ns/<namespace>/sa/<service account>.

Istio Authorization Policies

Each Envoy proxy runs an authorization engine that authorizes requests at runtime. When a request comes to the proxy, the authorization engine evaluates the request context against the current authorization policies, and returns the authorization result, either ALLOW or DENY.

You can find more information about the way Authorization Policies can be implement in the Istio documentation.

But as you can see, Authorization Policies must be created and maintained separately on each Istio cluster.

Global Access Control with Service Mesh Hub

Service Mesh Hub (SMH) is allowing you to define Access Control Globally using Access Policies.

The Access Policies you create are then translated in Istio Authorization Policies on the corresponding Istio clusters.

Note that the goal of SMH is to support multiple Service Mesh technologies, not only Istio (Open Service Mesh and AppMesh integrations have already started). The Access Policies will be translated in the corresponding resources.

To demonstrate how SMH Global Access Control works, we’ve deployed SMH in a cluster called mgmt and Istio in 2 clusters (cluster1 and cluster2. And we’ve deployed the bookinfo demo application on both clusters.

When you create a Virtual Mesh, you can define if you want to enable Global Access Control:

cat << EOF | kubectl --context mgmt apply -f -
apiVersion: networking.smh.solo.io/v1alpha2
kind: VirtualMesh
metadata:
  name: virtual-mesh
  namespace: service-mesh-hub
spec:
  mtlsConfig:
   autoRestartPods: true
   shared:
     rootCertificateAuthority:
       generated: null
  federation: {}
  globalAccessPolicy: ENABLED
  meshes:
  - name: istiod-istio-system-cluster1
    namespace: service-mesh-hub
  - name: istiod-istio-system-cluster2
    namespace: service-mesh-hub
EOF

In this example, we have created a Virtual Mesh with cluster1 and cluster2 and we have enabled Global Access Control by setting the value of `globalAccessPolicy` to ENABLED.

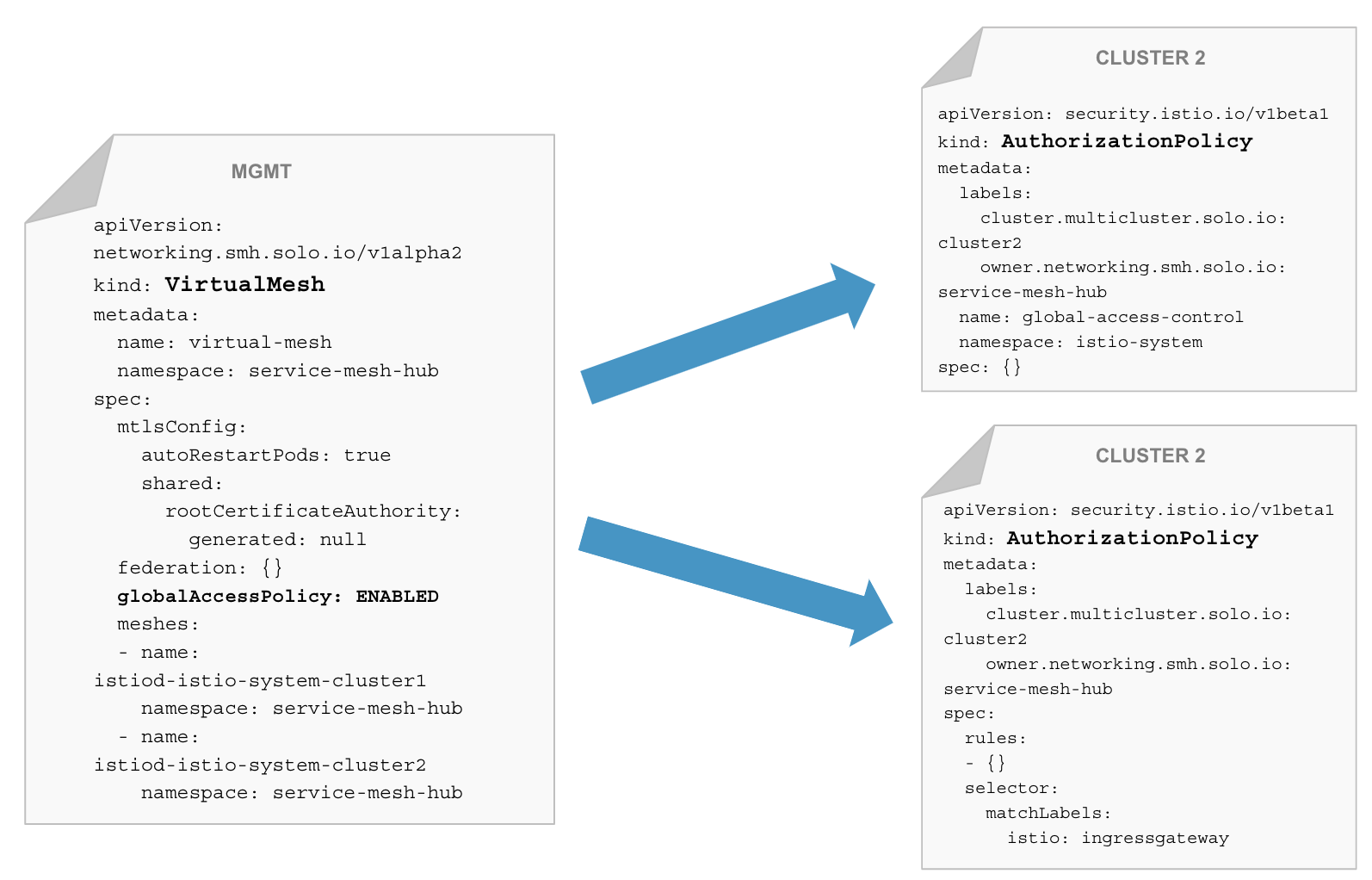

SMH has automatically created the following Istio Authorization Policies on both clusters:

The spec: {} in the first Authorization Policy means that no communications are allowed.

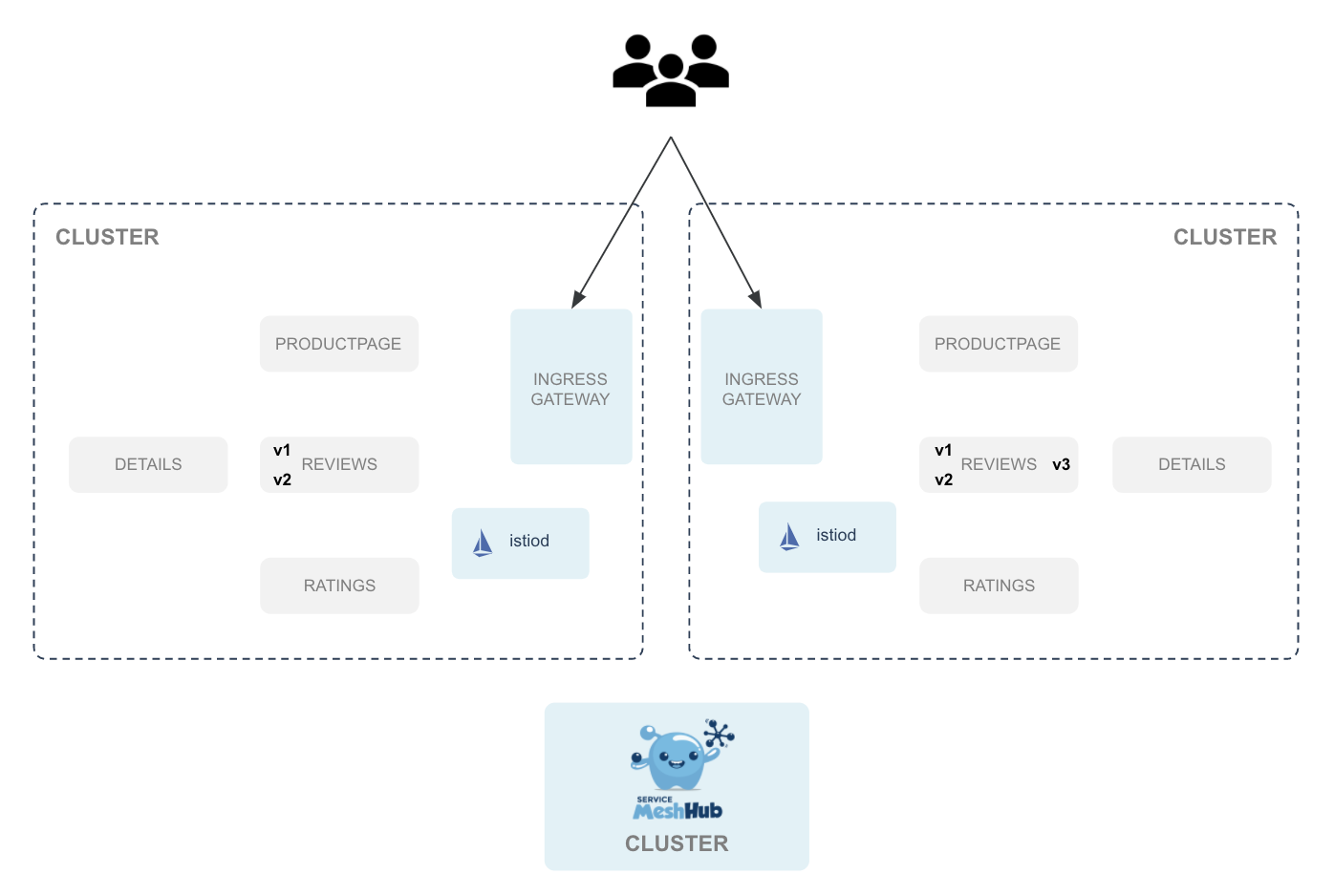

So, currently, the only communications allowed are from the external world to the Istio Ingress Gateways on both clusters.

If we try to access the productpage service on the first cluster, we get an `RBAC: access denied` response.

We need to create an SMH Access Policy to allow the Istio Ingress Gateway to access the productpage service.

Here is the corresponding yaml:

apiVersion: networking.smh.solo.io/v1alpha2
kind: AccessPolicy
metadata:
  namespace: service-mesh-hub
  name: istio-ingressgateway
spec:
  sourceSelector:
  - kubeServiceAccountRefs:
      serviceAccounts:
        - name: istio-ingressgateway-service-account
          namespace: istio-system
          clusterName: cluster1
  destinationSelector:
  - kubeServiceMatcher:
      namespaces:
      - default
      labels:
        service: productpage
      clusters:
      - cluster1

As you can see, we specify the cluster cluster1 in the spec.

This SMH Access Policy is translated to the following Istio Authorization Policy on the first cluster:

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  annotations:
  labels:
    cluster.multicluster.solo.io: cluster1
    owner.networking.smh.solo.io: service-mesh-hub
  name: productpage
  namespace: default
spec:
  rules:
  - from:
    - source:
        principals:
        - cluster1/ns/istio-system/sa/istio-ingressgateway-service-account
  selector:
    matchLabels:
      app: productpage

You can see that the SPIFFE ID is used to make sure the Policy only allows the Istio Ingress Gateway of the first cluster to access the productpage service.

We can also use the Service Mesh Hub UI to see the policy we’ve just created:

You can see which Workloads are allowed to access which Traffic Targets.

In this case, we see that the Istio Ingress Gateway of the first cluster is allowed to access the productpage service of the same cluster.

And if we try to access the application in a web browser, we can see that the productpage service can’t access the other services.

So next, we should create an SMH Access Policy to allow the productpage service to reach the details and reviews services.

Here is the corresponding yaml:

apiVersion: networking.smh.solo.io/v1alpha2
kind: AccessPolicy
metadata:
  namespace: service-mesh-hub
  name: productpage
spec:
  sourceSelector:
  - kubeServiceAccountRefs:
      serviceAccounts:
        - name: bookinfo-productpage
          namespace: default
          clusterName: cluster1
  destinationSelector:
  - kubeServiceMatcher:
      namespaces:
      - default
      labels:
        service: details
  - kubeServiceMatcher:
      namespaces:
      - default
      labels:
        service: reviews

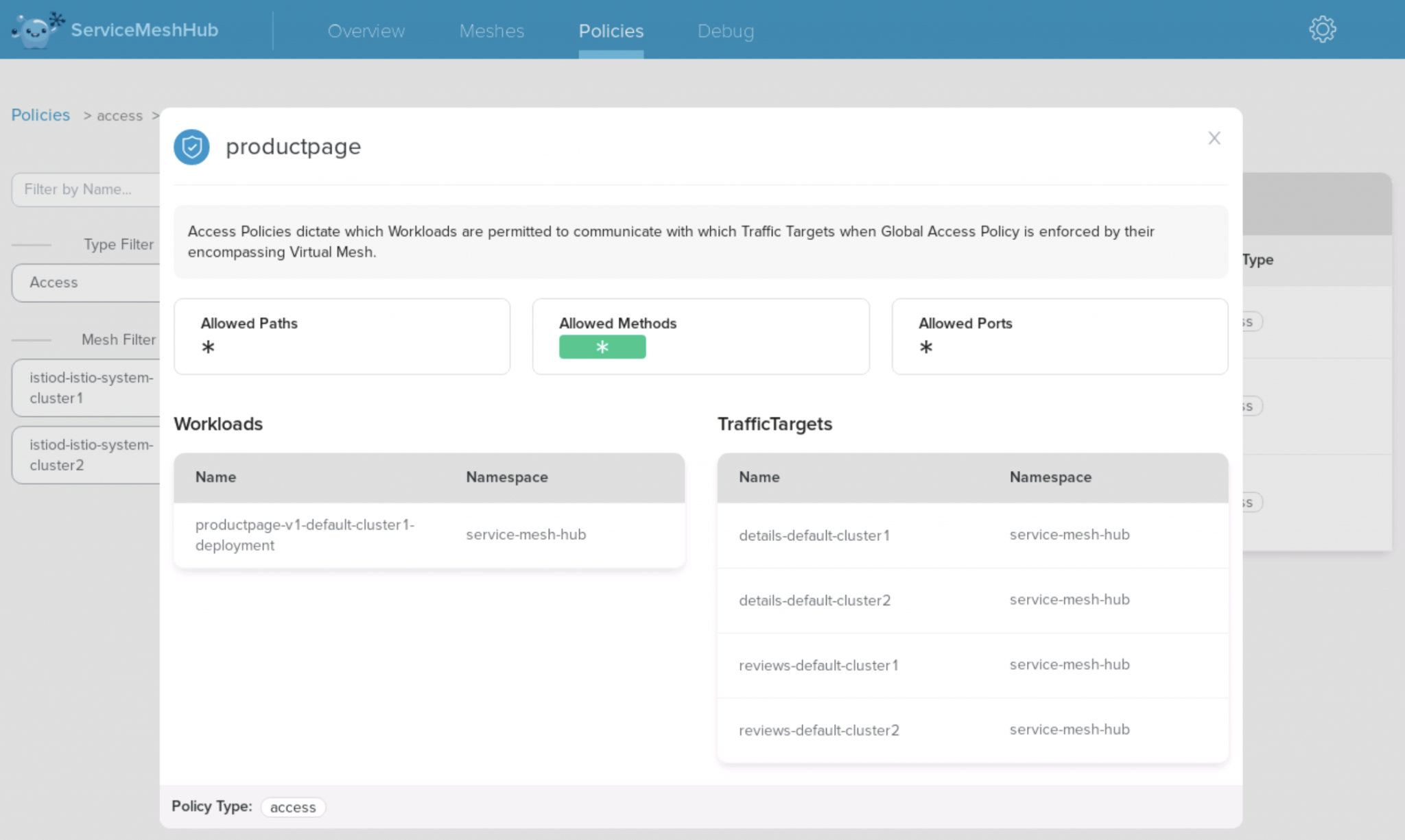

Let’s have a look at the Workloads and Traffic Targets impacted by this policy.

We didn’t include a clusters list in the `destinationSelector`, so the `details` and the reviews services of both clusters are included in the Traffic Targets.

Finally, we should create an SMH Access Policy to allow the reviews service to communicate with the ratings service.

Here is the corresponding yaml:

apiVersion: networking.smh.solo.io/v1alpha2
kind: AccessPolicy
metadata:
  namespace: service-mesh-hub
  name: reviews
spec:
  sourceSelector:
  - kubeServiceAccountRefs:
      serviceAccounts:
        - name: bookinfo-reviews
          namespace: default
          clusterName: cluster1
  destinationSelector:
  - kubeServiceMatcher:
      namespaces:
      - default
      labels:
        service: ratings

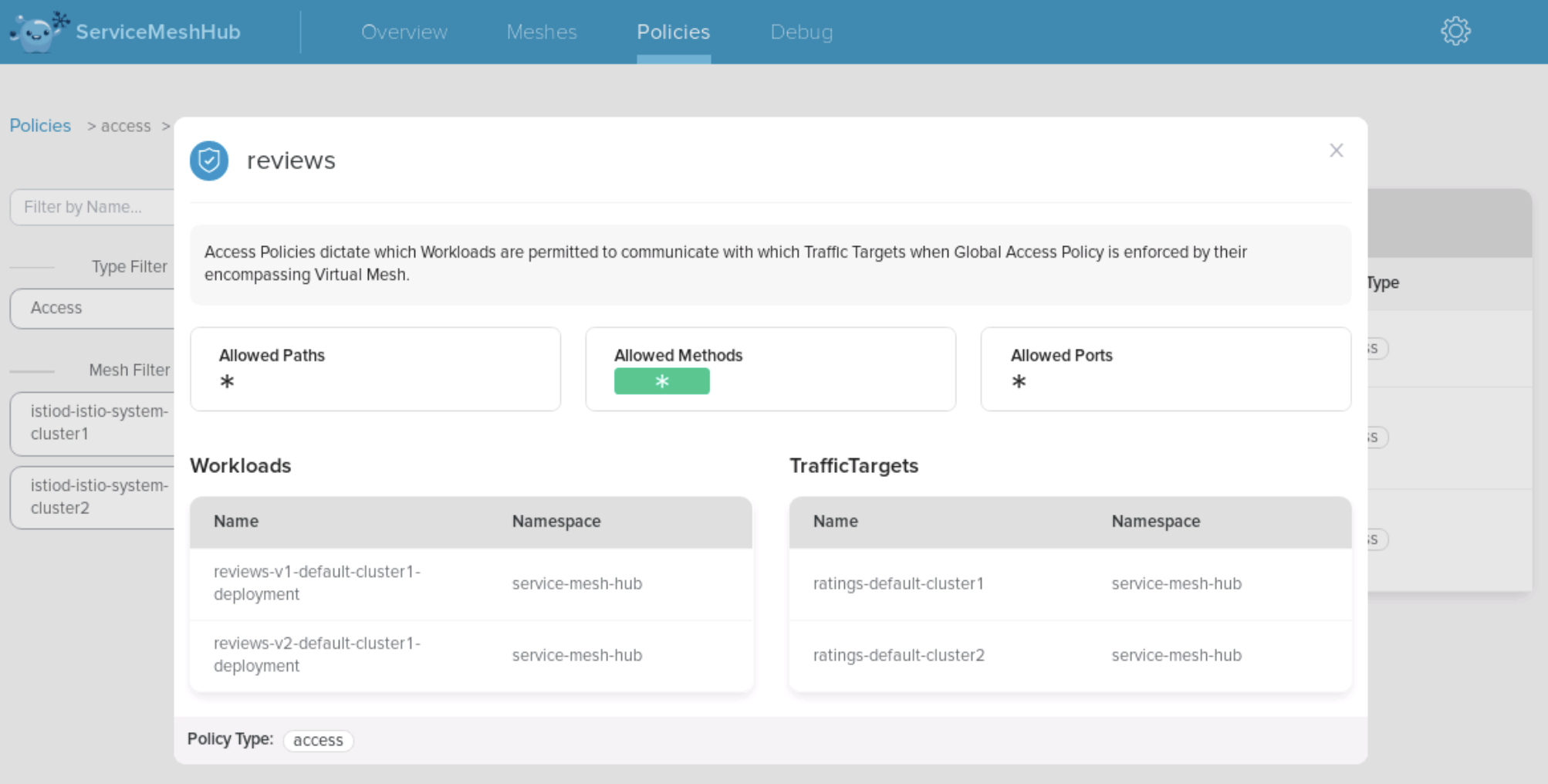

Let’s have a look at the Workloads and Traffic Targets impacted by this policy.

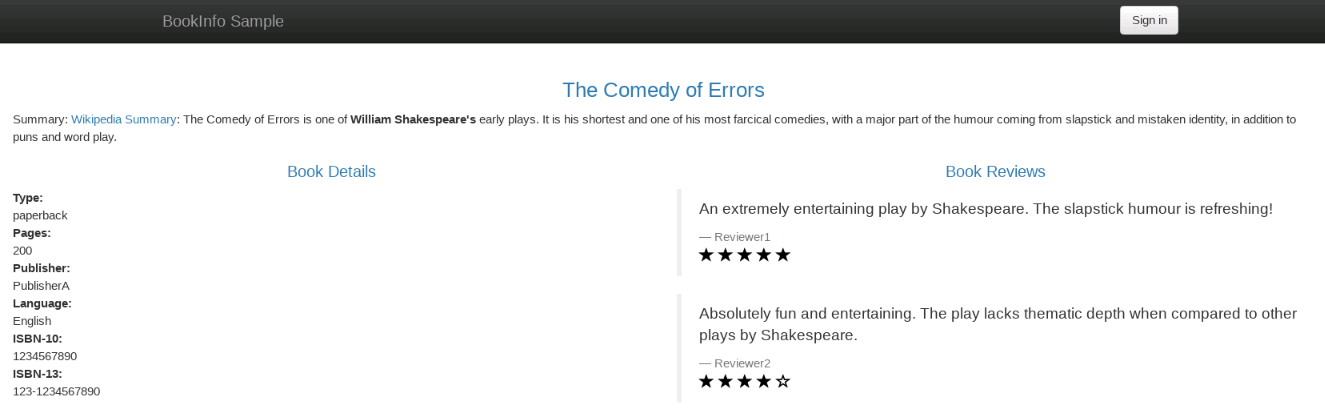

If we reload the web page, we can see that the application is now working well.

It allows all the communications we need for the application to work properly on the local cluster.

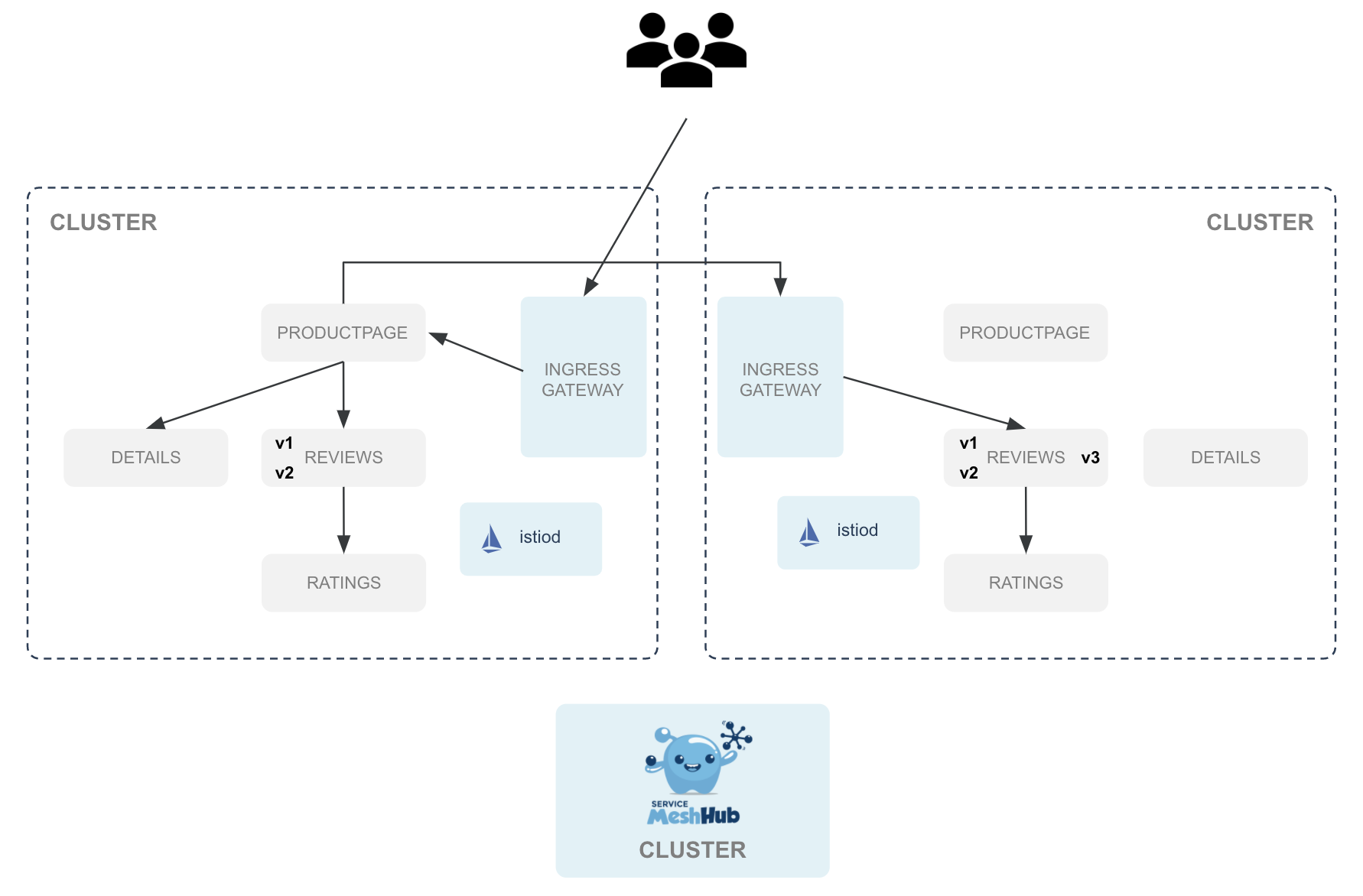

But if you have read the previous post about Cross-cluster service communication with service mesh, you know that we want to allow the productpage service of the first cluster to communicate with the reviews service of the second cluster (this is already the case) and the reviews service of the second cluster to communicate with the ratings service of the same cluster.

Let’s update the reviews policy to allow that.

Here is the corresponding yaml:

apiVersion: networking.smh.solo.io/v1alpha2
kind: AccessPolicy
metadata:
  namespace: service-mesh-hub
  name: reviews
spec:
  sourceSelector:
  - kubeServiceAccountRefs:
      serviceAccounts:
        - name: bookinfo-reviews
          namespace: default
          clusterName: cluster1
        - name: bookinfo-reviews
          namespace: default
          clusterName: cluster2
  destinationSelector:
  - kubeServiceMatcher:
      namespaces:
      - default
      labels:
        service: ratings

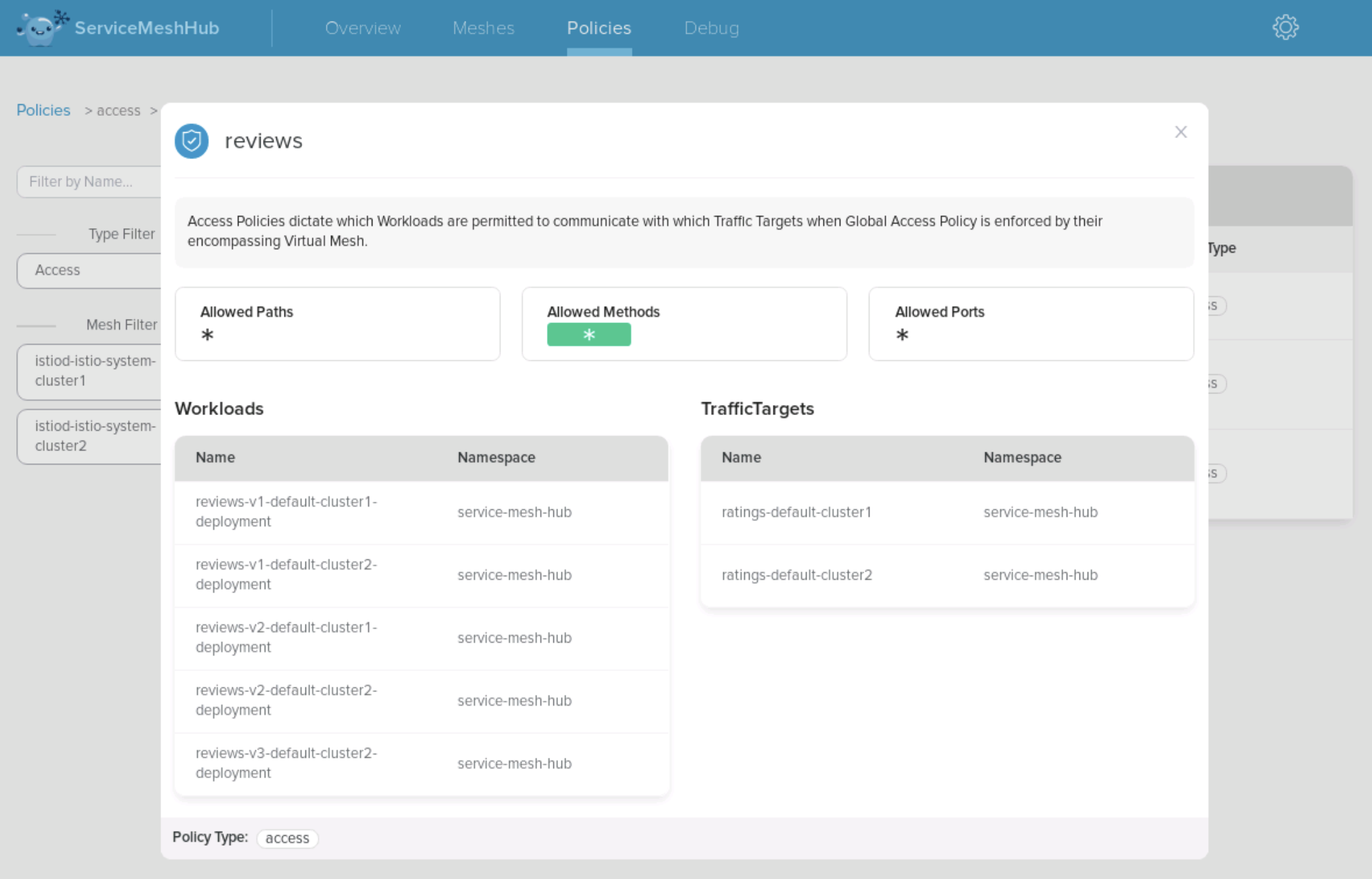

Let’s have a look at the Workloads and Traffic Targets impacted by this policy.

You can see that the Workloads list now includes the reviews services of the second cluster.

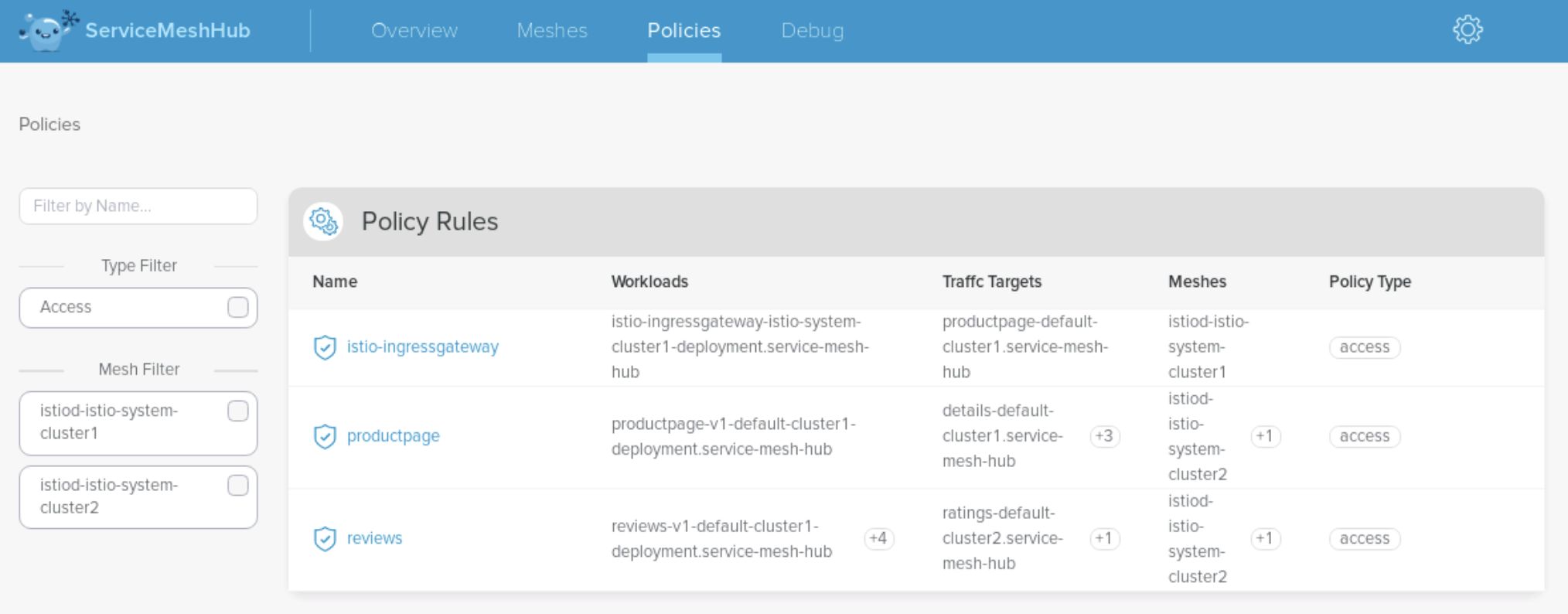

Here are all the policies we have at the end:

As you can see, Service Mesh Hub allows you to create the Access Policies programmatically while providing a nice User Interface to understand all the communications allowed globally.
